EV PORTABLE COLUMN SYSTEM - BLACK

ELEEVOLVE-50

New product

Portable Column System - Black

More details

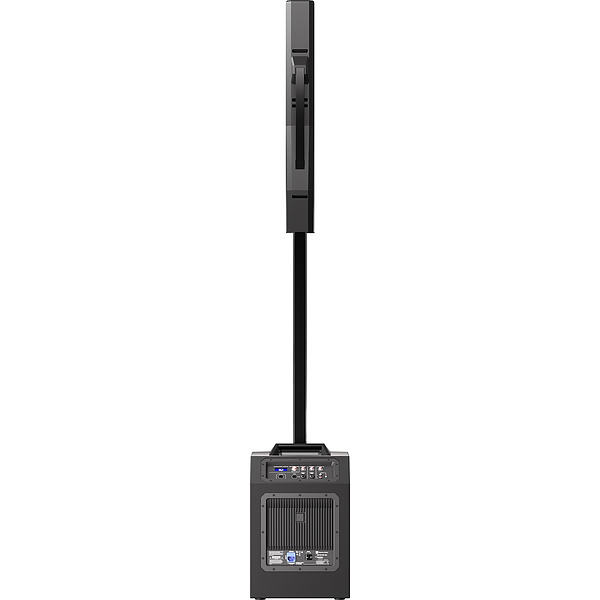

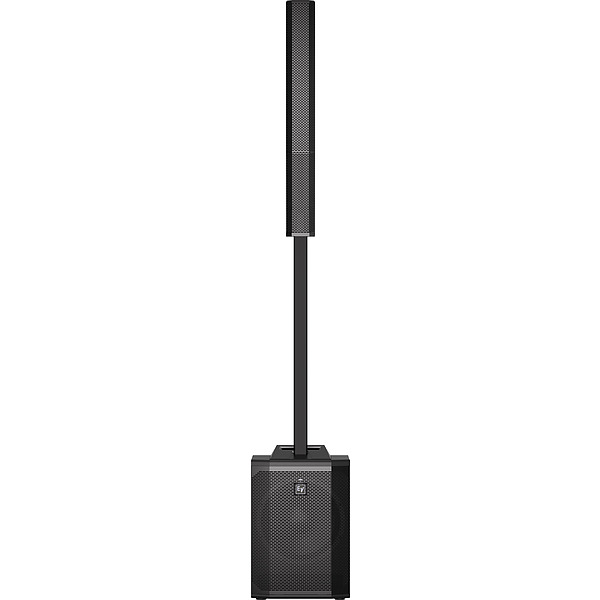

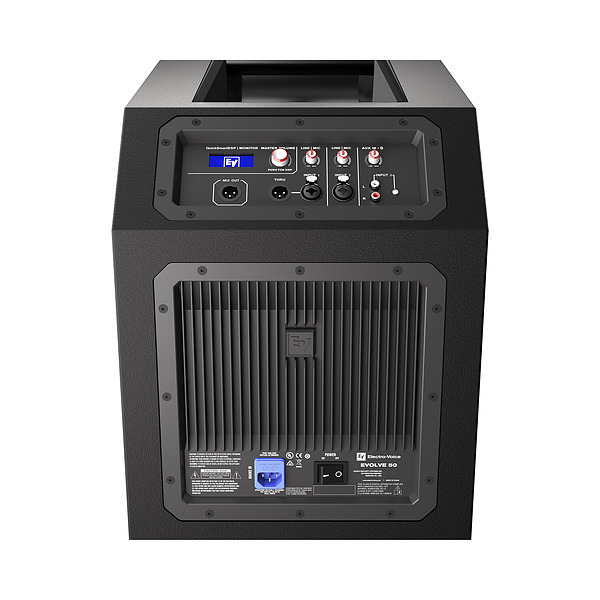

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W D amplifier and driven by EV’s QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

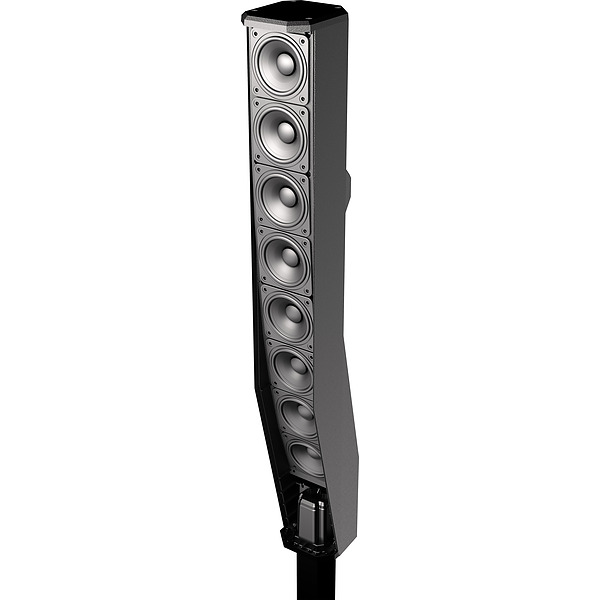

The bi-directional aluminum pole’s connection to the sub is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components. Eight 3.5” neodymium drivers in the column array coupled with the 12” subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Features

  • Clean, compact design, built to blend in
  • Easy transport and setup in seconds
  • Ultra-wide 120° horizontal and 40° vertical coverage
  • No cables to connect sub, pole and column speaker (magnetic lock connection)
  • Real PA performance with wide, even coverage
  • High-quality Bluetooth® audio & wireless control and monitoring via the new Bluetooth® QuickSmartMobile app
  • QuickSmartDSP provides best-in-class processing via EV’s signature single-knob user interface with LCD
  • Colour Black
  • Coverage (H x V) 120° x 40°
  • Frequency Range 37 Hz – 20 KHz1 (-10dB)
  • Maximum SPL 127 dB
  • Power Rating 1000 watt
  • Warranty 3 Years
  • Weight 26.25 kg
