PRESONUS STUDIOLIVE 32CH RACKMOUNT DIGITAL STAGEBOX/MIXER

Product Code: PRE-SL-32R

Condition: New product

StudioLive 32CH Rackmount Digital Stagebox/Mixer

More info
Specifications
Download
Accessories
Videos

The StudioLive 32R Series III rack mixer is a perfect partner for a StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 32R to a Series III front of house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 32R’s preamps and phantom power from a networked Series III console.

In stage box + monitor mixer mode, the StudioLive 32R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class all packed into just two rackspaces (2U).

The result of ten years of R&D, third-generation StudioLive Series III rack mixers are fully recallable, including remote controlled XMAX preamps. Yet despite their extensive features, StudioLive Series III rack mixers actually improve upon PreSonus®’ legendary ease of use while letting you customize their workflow and operations in software to fit the way your clients work.

The StudioLive sound is better than ever, including third generation Fat Channel processing, re engineered from the ground up, and vintage style EQs and compressors. Add built in AVB networking, multitrack recording via USB 2.0 and AVB, onboard stereo recording to SD Card, and a complete suite of software, and you have a mixing and recording powerhouse that’s equally formidable as a stage box/monitor mixer; as a rackmount front of house mixer, controlled from a touchscreen computer or tablet; and as the heart of a recording system.

Features

32-channel AVB stage box for StudioLive Series III consoles
Simple stage box mode and stage box + monitor mixer mode, with control of preamps and phantom power from StudioLive Series III console
Fully recallable, 32-channel, Series III digital rack mixer

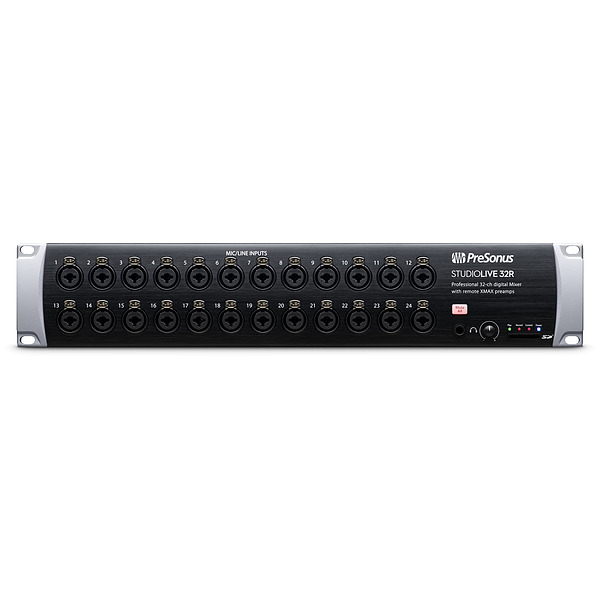

34 total inputs: 32 locking combo mic/line channel inputs with recallable XMAX Class A mic preamps and 2 RCA line-level channel inputs

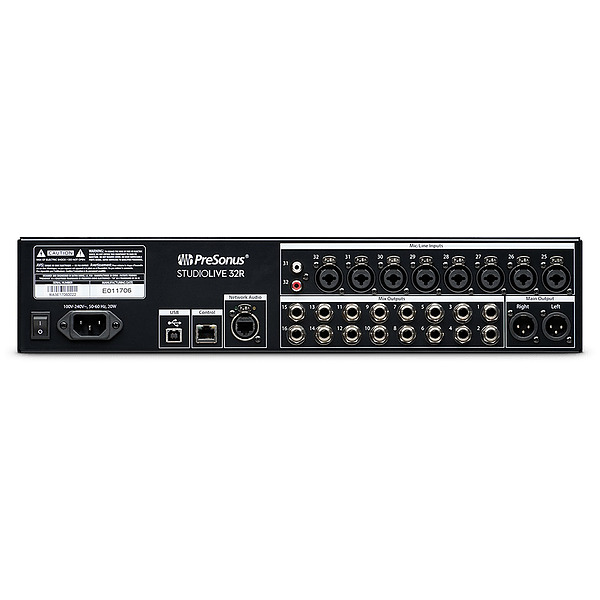

16 ¼” TRS FlexMix outputs and 2 XLR main outputs (left/right)
Scene management with Scene Safe
16 FlexMixes (Aux mixes, Subgroups, or Matrix mixes)
4 dedicated subgroups
4 internal effects buses (combination of reverbs and delays with modern and vintage options)
Fat Channel processing with vintage EQ and Compressor modes available on every channel and A/B compare
4-band parametric EQ on inputs and 6-band parametric EQ on outputs
Delay on every input and output
40x40 USB 2.0 recording interface and 55x55 AVB recording interface
Onboard stereo recording to SD card
Complete solution: Includes UC Surface touch-control software for Mac, Windows, iPad, and Android; Capture™ live-recording software and Studio One® Artist DAW for Mac and Windows; compatible with free QMix-UC® personal monitoring control for iPhone®/iPod® touch, and Android™
