> >>>EV 8" TWO WAY COMPRESSION CEILING SPEAKER (PAIR)

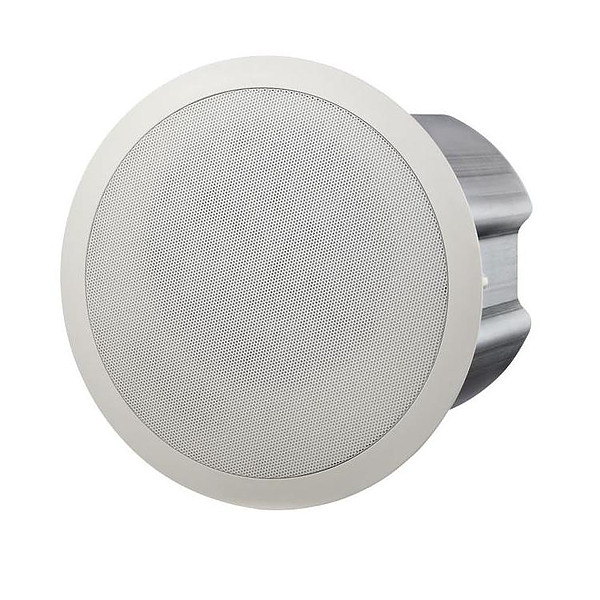

8" Two Way Compression Ceiling Speaker (Pair) View larger

EV 8" TWO WAY COMPRESSION CEILING SPEAKER (PAIR)

ELEEVID-PC8.2

New product

8" Two Way Compression Ceiling Speaker (Pair)

More details

The EVID PC8.2 speaker system from Electro-Voice is a complete high performance two way ceiling speaker package. The EVID PC8.2 is ideal for background and foreground music, voice evacuation, paging, and sound reinforcement applications. All EVID Premium Ceiling Speaker models provide a unique combination of high acoustic output, superb coverage control, high power handling and wide dispersion, to cover virtually any size listening area.

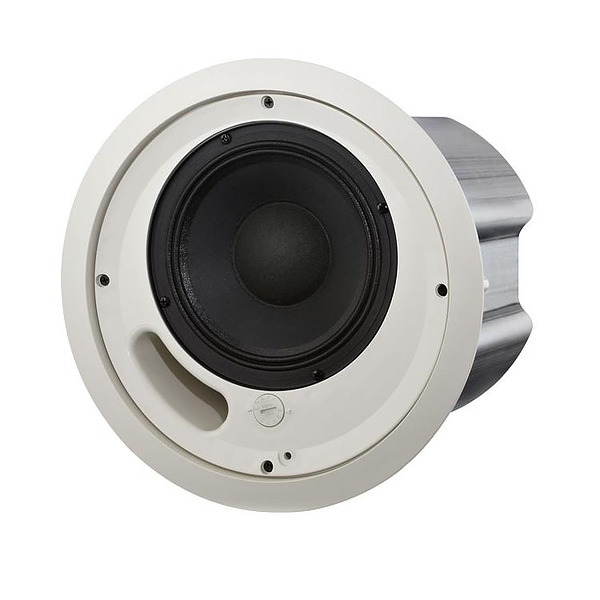

The EVID PC8.2 comes completely assembled with an integrated bezel assembly, grille, rear enclosure, 8 inch (200 mm) coaxial two way speaker and internal high power line matching transformer. The speaker features a waveguide coupled true compression HF driver and a long excursion 8 inch (200 mm) woofer. The EVID PC8.2 utilizes a transformer that offers a selection of 15, 30 or 60 watts delivered to the speaker system using 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle.

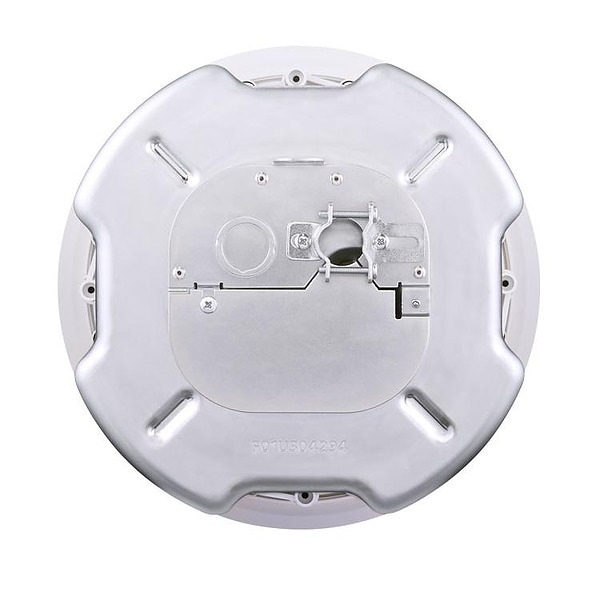

The perforated grille is fully zinc plated and finished in semi gloss white powder coated enamel. The baffle and bezel are constructed from fire rated ABS. The rear enclosure is constructed from zinc plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4 pin terminal block that allows direct connection to the speaker with up to 2.5 mm (12 AWG) wire and provides pass through to additional speakers.

Two (2) adjustable metal tile bridges and metal “C” ring are included for safe suspension of the EVID PC8.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiberbased ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions.

Features

  • High output true compression driver for wide dispersion and superior coverage control out to 10 kHz
  • Long throw 8-inch (200 mm) woofer housed in a large vented 14 gauge steel enclosure for extended LF performance down to 40 Hz
  • Front baffle transformer tap adjustment switch
  • Includes tile rails and “C” mounting ring
  • Colour White
  • Coverage (H x V) 120° Conical
  • Dimensions (H x W x D) 324 x 327 mm (H x Dia)
  • Impedance 10 ohms
  • Material ABS Plastic
  • Maximum SPL 114 dB
  • Power Rating 100 watt (RMS)
  • Sensitivity 88 dB
  • Transformer Taps 60w, 30w, 15w, 8 ohm
  • Warranty 8.0 kg
  • Weight 3 Years
