> >>>EV 4" TWO WAY COAXIAL CEILING SPEAKER (PAIR)
4" Two Way Coaxial Ceiling Speaker (Pair) View larger

ELECTROVOICE

EV 4" TWO WAY COAXIAL CEILING SPEAKER (PAIR)

ELEEVID-C4.2LP

EVID-C4.2LP

New product

4" Two Way Coaxial Ceiling Speaker (Pair)

More details

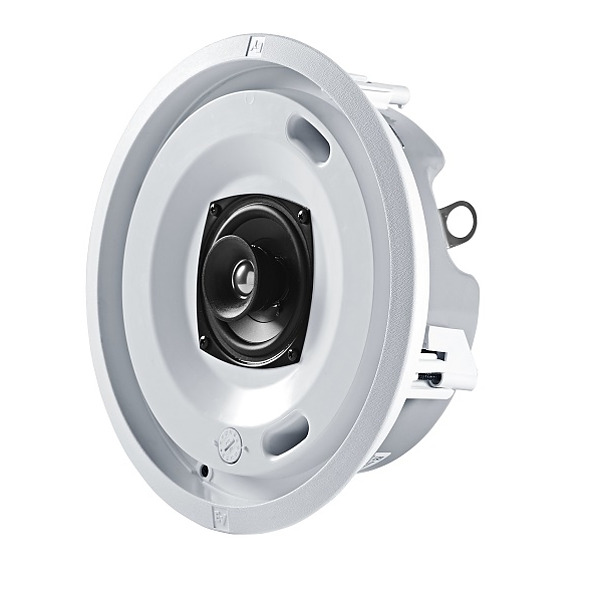

The Electro-Voice EVID-C4.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a very low profile package. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer.

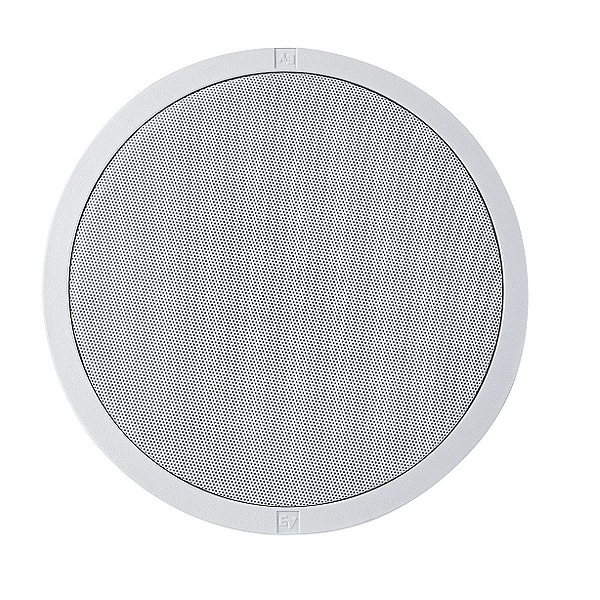

The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C4.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C4.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel.

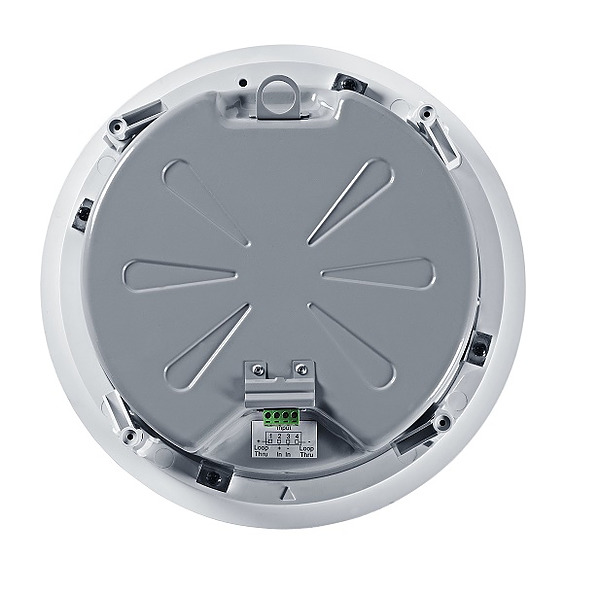

The low profile enclosure makes it easy to mount in very tight spaces. A side cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVIDC4.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Features

  • Low profile 4” coaxial two-way (3.7” deep)
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Includes tile bridge and mounting ring for easy installation
  • UL1480A and CSA 22.2 205 certified
  • Colour White
  • Coverage (H x V) 130° conical
  • Dimensions (H x W x D) 94 x 300mm
  • Frequency Response 60 Hz - 20 kHz
  • Inputs 8O; 70V/100V
  • Power Rating 50 Watt at 8 ohm
  • Transformer Taps 3.7, 7.5, 15 and 30 Watt
  • Warranty 3 Years
  • Weight 3.32 kg
