UNIKA PRO SERIES DUAL-CHANNEL ACTIVE DI BOX WITH ISOLATION TRANSFORMER

Product Code: UNIPRO-248

Supplier SKU: PRO 248

Condition: New product

Pro Series Dual-Channel Active DI Box with Isolation Transformer

More details

More info
Specifications
Accessories

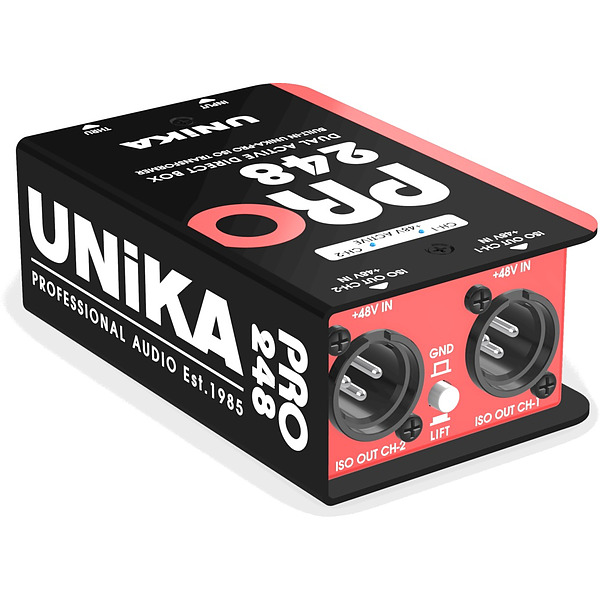

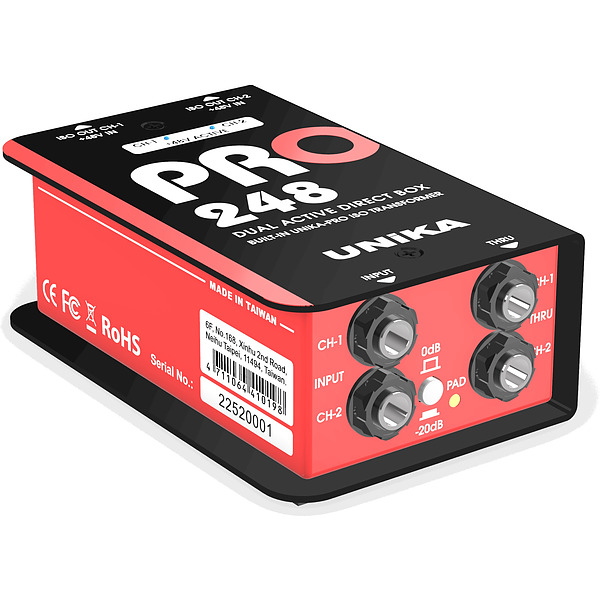

PRO 248 is an active dual-channel DI box. Unlike traditional DI, PRO 248 uses +48V phantom power instead of the traditional 9V dry cell battery, so users can use it on the mixer or external phantom power supply. Power is supplied to PRO 248, the power supply circuit and the output signal line are shared, and no additional power cord is required. The +48V indicators are set on the upper cover. The +48V circuit specially selects the British OEP PT-4 pulse transformer.

PRO 248 has a pair of built-in UNiKA-PROTM EI30A10E 1+1:1+1 isolation transformers, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary leakage caused by radio frequency interference, ground interference and potential difference. PRO 248 is especially suitable for electronic musical instruments, recording studios and fixed installation projects by using mixers.

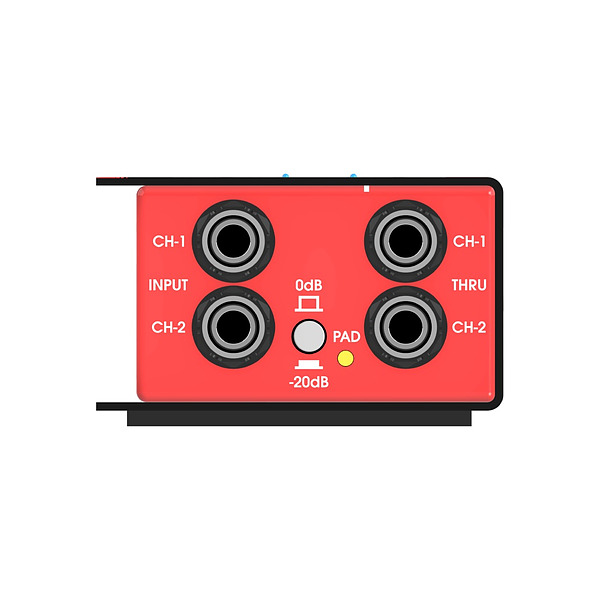

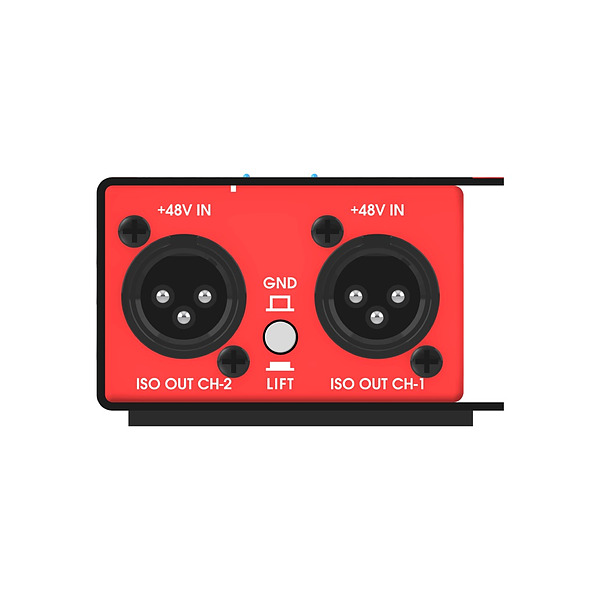

The PRO 248 uses two TRS sockets on the input, and two TRS through out are convenient for musician to pass the direct signal to the instrument amplifier. In addition, it is equipped with a 0/-20dB attenuation switch and LED indicator, which is suitable for various types of audio signals with high and low impedance. The output terminal is also equipped with a GND/LIFT button to quickly eliminate ground noise.

Features

Power by external +48V phantom power
Built-in UNiKA-PROTM EI30A10E isolation transformer
Use British OEP PT-4 1:1 audio pulse transformer in phantom power circuit
+48V status indicator on the upper cover
The input socket uses a pair of TRS jacks
Use a pair of TRS jacks as through out terminal
At 0dB input, the set load impedance is 260KΩ, which can clearly show the high frequency overtones , harmonic and graininess of electric guitars or electric bass
50Ω ultra-low impedance output, suitable for various types of mixers and pre-amp equipment
There is 0dB/-20dB input signal attenuation switch with status indicator
The output is equipped with a GND/LIFT switch
