ELECTRO-VOICE EVID-EC6.2 CEILING LOUDSPEAKER - ECONOMY SERIES (1X PAIR)

ELEEVID-EC6.2

EVL-EVID-EC6.2

New product

Balcatta: 0
Geebung: 0

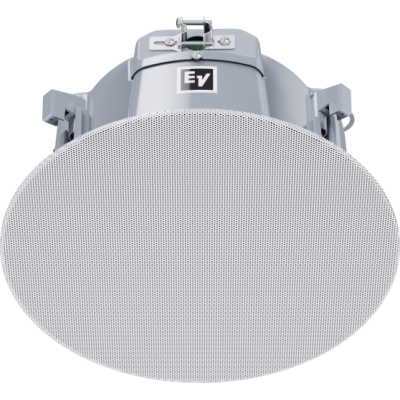

EVID-EC6.2 6.5" Two-Way Coaxial Ceiling Speaker 70/100V - White

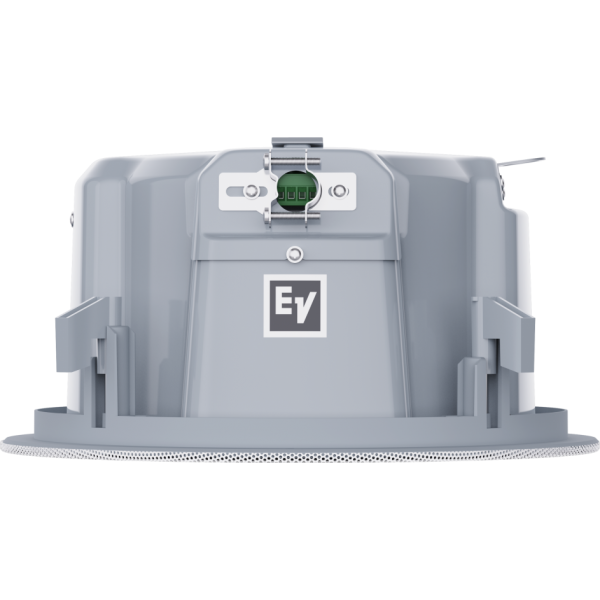

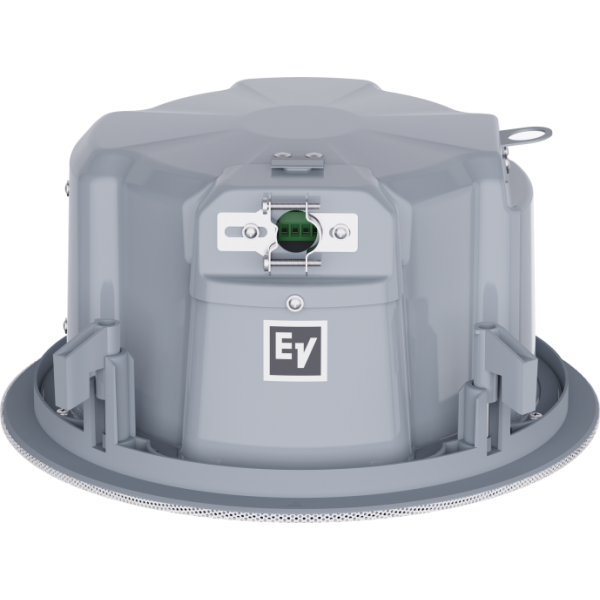

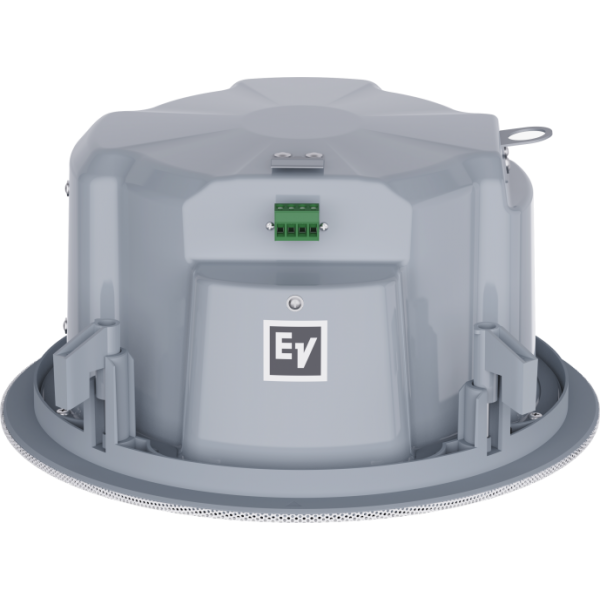

The EVID-EC6.2 is a high-performance 6.5" two-way coaxial ceiling speaker designed for commercial installations that demand premium sound quality and aesthetics. With a bezel-less design and magnetic grille, it seamlessly blends into modern environments while delivering rich, full-range audio. Featuring a selectable front-baffle tap switch, the speaker supports both 70V/100V and 8-ohm operation, ensuring flexibility for integrators. A tile bridge and C-ring are included for simplified installation in drop ceilings, while a side terminal provides pass-through wiring options to accommodate daisy-chained setups.

Built for reliable performance, the EVID-EC6.2 is rated for 50W continuous and 200W peak power handling. It delivers a maximum SPL of 115 dB and covers a wide 110° conical dispersion angle, ideal for evenly distributed background or foreground music and paging. UL 1480A, UL 2043, CSA 22.2 205, and IEC 62368-1 certifications make it compliant for use in various commercial and public applications. The speaker is finished in RAL 9003 signal white and includes accessories for quick and professional installation.

Key Features

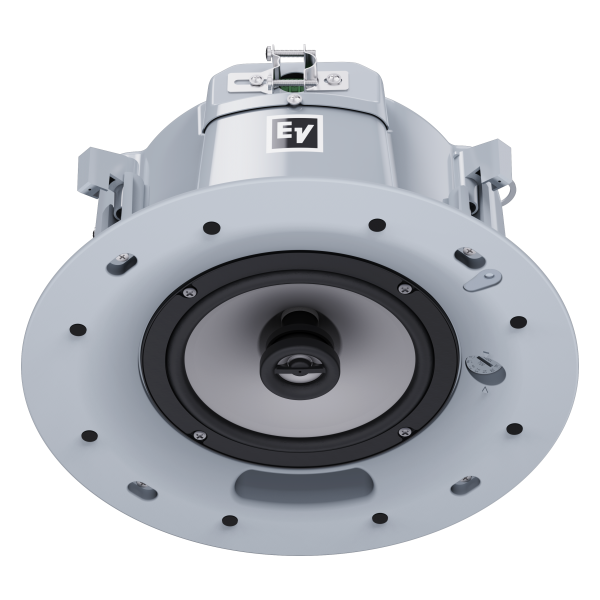

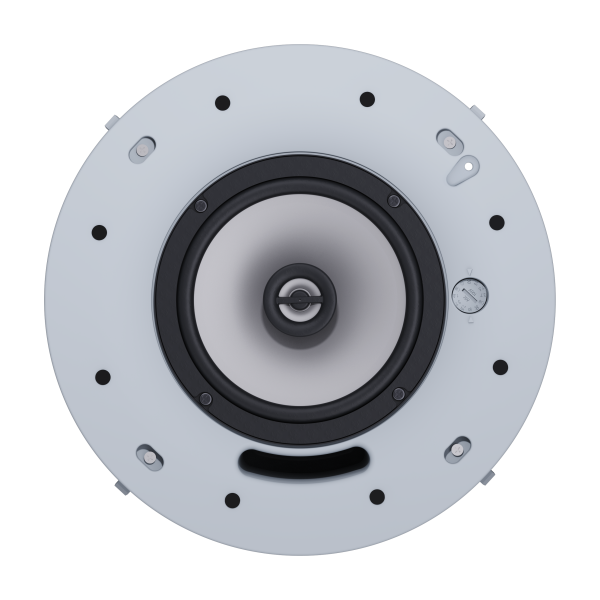

  • 6.5" coaxial two-way speaker with 1" HF driver and selectable 70V/100V/8Ω operation
  • Front baffle tap switch with transformer taps: 30W, 15W, 7.5W, 3.75W, and 1.88W (70V)

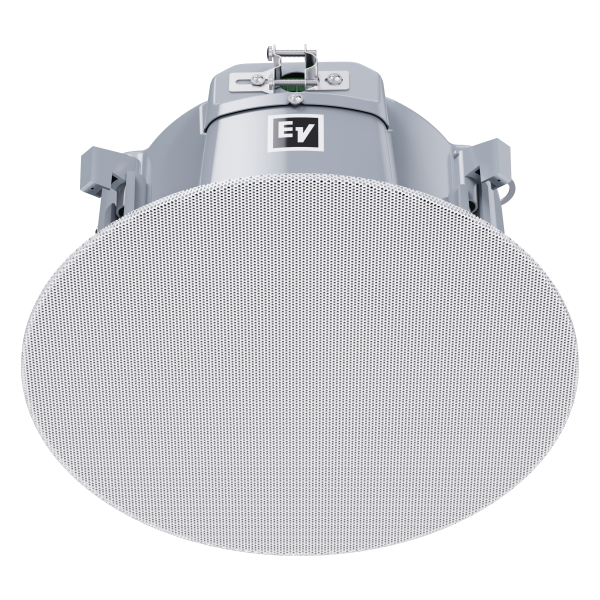

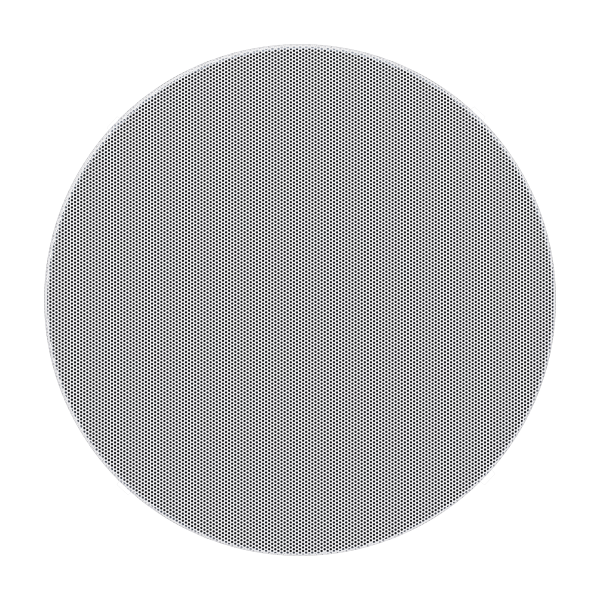

  • Bezel-less magnetic grille and low-profile design with included tile bridge and C-ring
  • 115 dB peak SPL, 110° conical dispersion, and wide frequency range of 80 Hz – 20 kHz
  • Certified for UL1480A, UL2043, CSA 22.2 205, IEC 62368-1 and IP34 indoor-rated
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
