> >>>>EV DUAL 8" TWO-WAY FULL RANGE LOUDSPEAKER

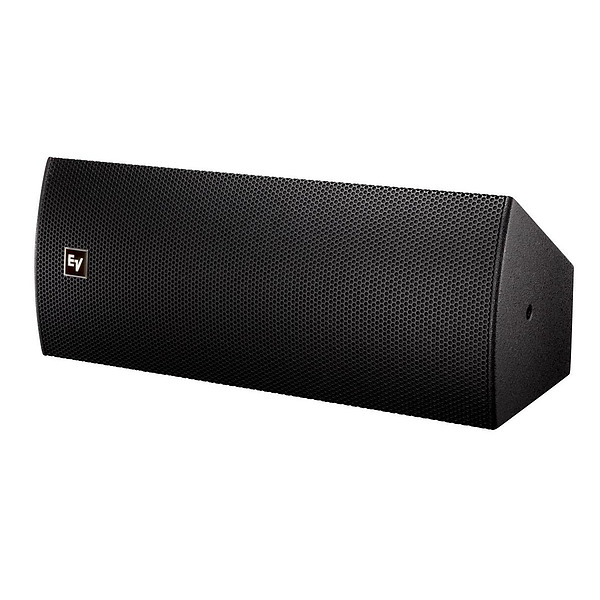

Dual 8" Two-Way Full Range Loudspeaker View larger

ELECTROVOICE

EV DUAL 8" TWO-WAY FULL RANGE LOUDSPEAKER

ELEEVU-2082/95-BLK

EVU-2082/95-BLK

New product

Dual 8" Two-Way Full Range Loudspeaker

More details

Balcatta: 0
Geebung: 0

The Electro-Voice EVU-2082/95 is a compact two-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall, stage lip and under balcony applications.

The EVU-2082/95 incorporates the ICT-1-8, a high-output 1.3” diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-8-16 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability.

The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint, available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed). Additional mounting points are located on the rear of the enclosure for use with an Omnimount™ type bracket.

An available 100 Volt transformer kit may be easily mounted over the input panel for use in distributed systems. All of these features give you the flexibility to address a large range of venues, while quickly and precisely supporting customer requirements.

Available in White.

Features

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • Optional Neutrik Speakon(R) connector panel
  • One 1.3-inch (33 mm) diaphragm compression driver
  •  U-bracket included
  • Optional 70 V and 100 V operation
  • OmniMount(R)-compatible rear mounting points
  • Available in black or white (interior use)
  • Ultracompact 8 x 21 inch enclosure
  • 90º x 50º rotatable waveguide
  • Colour Black
  • Coverage (H x V) 90° x 50°
  • Dimensions (H x W x D) 247.2 x 615.5 x 237.2 mm
  • Frequency Response 60 Hz - 20 kHz (-10 dB)
  • Impedance 8 ohms
  • Material 9-ply hardwood plywood with textured paint
  • Maximum SPL 126 dB
  • Power Rating 350 watt (RMS) 1400 watt (Peak)
  • Sensitivity 95 dB (1 W/1 m)
  • Warranty 5 Years
  • Weight 12.8 Kg
