AUDAC 8" HORN LOADED OUTDOOR SPEAKER - 120 WATT

AUDHS208TMK2

New product

Horn Loaded Outdoor 8" 2 Way Speaker

More details

The HS2 series are 2 way horn loaded loudspeakers which are specifically engineered to provide a long throw, full range sound projection in a wide variety of in and outdoor applications.

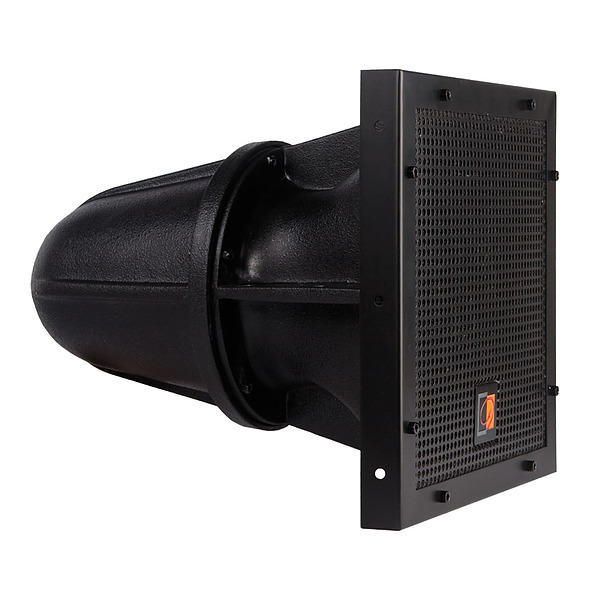

The HS208TMK2 is the 8” model of the HS2 family which is fitted with an 100 Volt line transformer. It features a 8” high output woofer and compression driver with 1.3” voice coil. The compression driver is equipped with an overload protection and is fitted with a 40° x 40° coverage horn which is coaxially constructed as one entitity with the loudspeakers enclosure.

Thanks to the selection of complementary highquality components which are carefully matched, the HS208TMK2 delivers a wide range, smooth frequency response with a high efficiency. This ensures an extraordinary clarity of speech and extended frequency response for music with an RMS power of 150 Watt, up to a maximum power of 300 Watt.

The frequency range (-10 dB) starts from 70 Hz up to 20 kHz and the sensitivity (1W / 1m) reaches 97 dB, while a maximum continuous sound pressure level of 123 dB can be achieved. The enclosure is constructed out of multi- ayer glass composite material with a durable scratch resistant EPDM coating. The aluminium front grill is lined with an acoustical transparent and water eliminating backing.

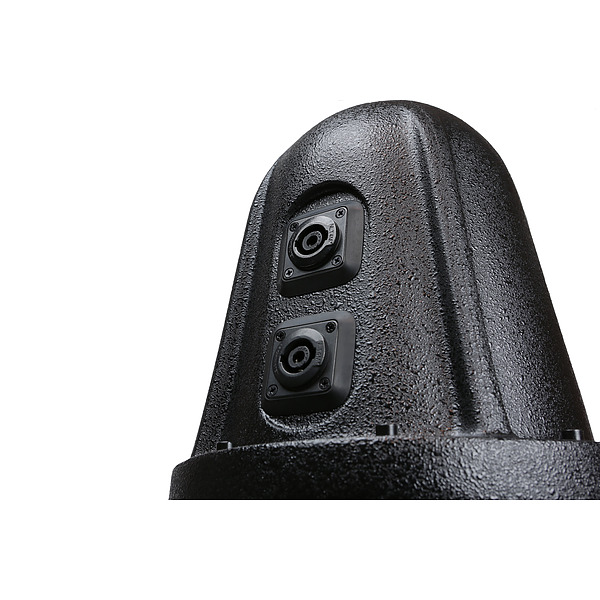

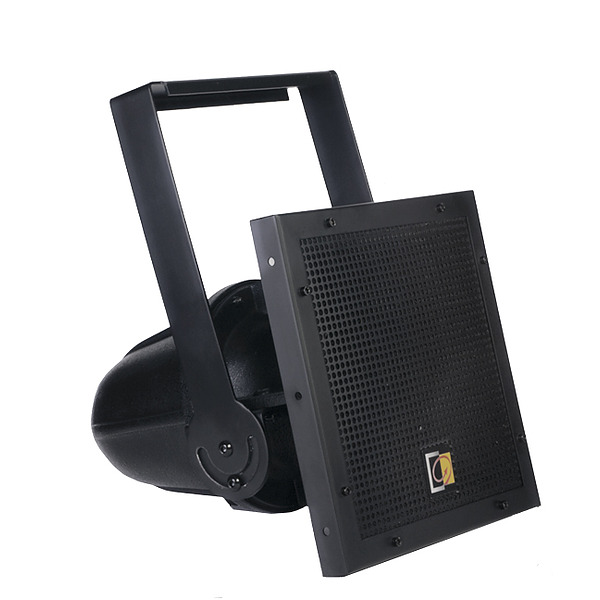

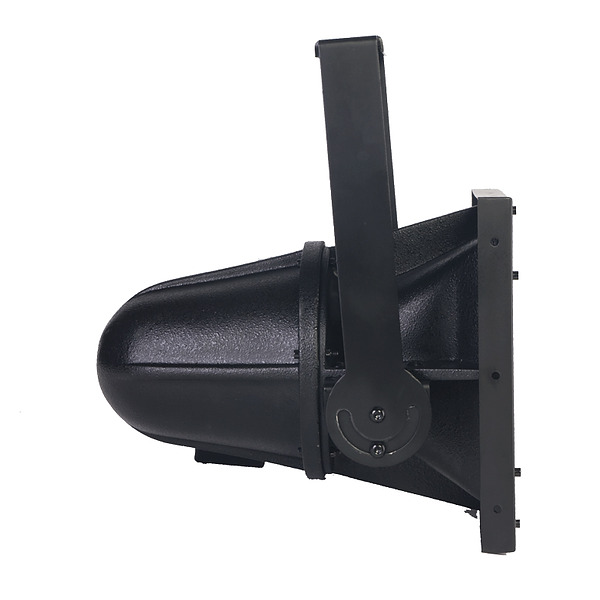

A waterproof connection box containing a multi-tapping barrier terminal block enables the selection of different line transformer power tappings, while providing easy link through to other speakers. These specific features make the system IP65 rated when installed at minimum 5° downtilt. An optional mounting bracket provides a complete solution for installation of the system.

Features

  • High fidelity, full-range reproduction of music and speech
  • High efficiency horn loading
  • Application specific coverage pattern
  • Scratch-free EPDM coating
  • Linking possible
  • IP rating of 65



  • Colour Black
  • Coverage (H x V) 40° x 40°
  • Dimensions (H x W x D) 360 x 360 x 482 mm
  • Frequency Response 70 Hz - 20 kHz (-10 dB)
  • Impedance 8 Ohm or 100 volt
  • IP Rating IP65
  • Maximum SPL 123 dB
  • Power Rating 75 watt (RMS) 300 watt (Peak)
  • Sensitivity 97 dB
  • Transformer Taps 120, 60, 30 watt @ 100 volt plus 8 ohm bypass
  • Warranty 5 Years
  • Weight 15.6 kg
