> >>>AUDAC 12" HORN LOADED OUTDOOR SPEAKER - 240 WATT
Horn Loaded Outdoor 12" 2 Way Speaker View larger
Previous Next

AUDAC

AUDAC 12" HORN LOADED OUTDOOR SPEAKER - 240 WATT

AUDHS212TMK2PLUS

HS212TMK2+

New product

Horn Loaded Outdoor 12" 2 Way Speaker

More details

Balcatta: 0
Geebung: 0

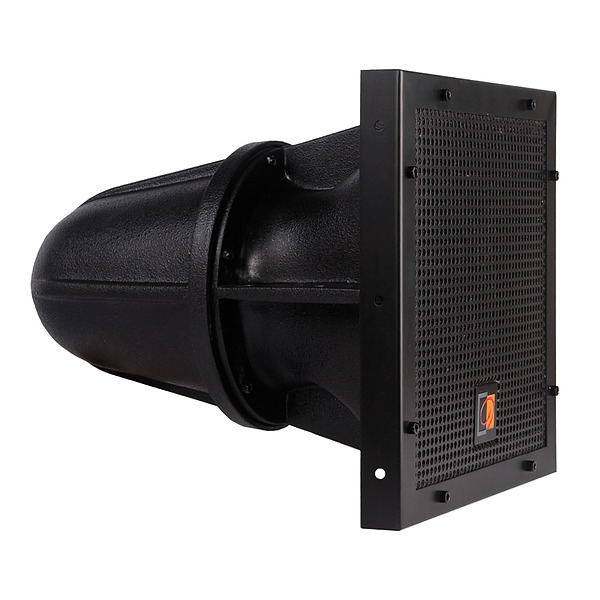

The HS2 series are 2 way horn loaded loudspeakers which are specifically engineered to provide a long throw, full range sound projection in a wide variety of in and outdoor applications.

The HS212TMK2 is the 12” model of the HS2 family which is fitted with an 100 Volt line transformer. It features a 12” high output woofer and a neodymium compression driver with 1.8” voice coil. The compression driver is equipped with an overload protection and is fitted with a 40° x 40° coverage horn which is coaxially constructed as one entity with the loudspeaker’s enclosure.

Thanks to the selection of complementary high quality components which are carefully matched, the HS212TMK2 delivers a wide range, smooth frequency response with a high efficiency. This ensures an extraordinary clarity of speech and extended frequency response for music with an RMS power of 350 Watt, up to a maximum power of 700 Watt. The frequency range (-10 dB) starts from 65 Hz up to 20 kHz and the sensitivity (1W / 1m) reaches 95 dB, while a maximum continuous sound pressure level of 125 dB can be achieved.

The frequency range (-10 dB) starts from 70 Hz up to 20 kHz and the sensitivity (1W / 1m) reaches 97 dB, while a maximum continuous sound pressure level of 123 dB can be achieved. The enclosure is constructed out of multi layer glass composite material with a durable scratch resistant EPDM coating. The aluminium front grill is lined with an acoustical transparent and water eliminating backing.

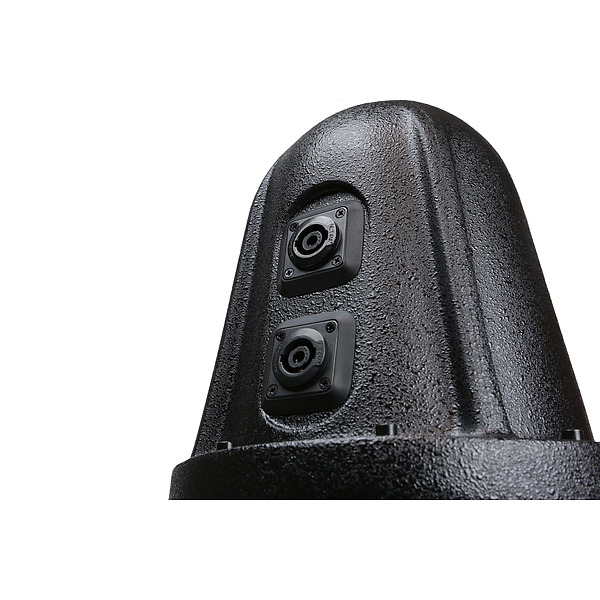

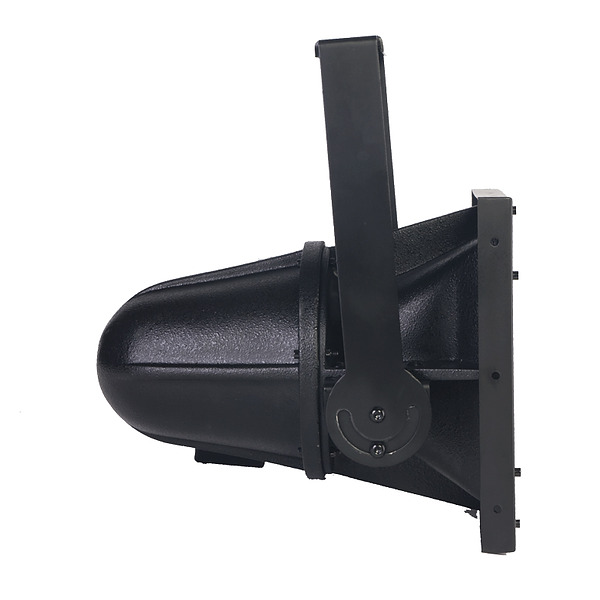

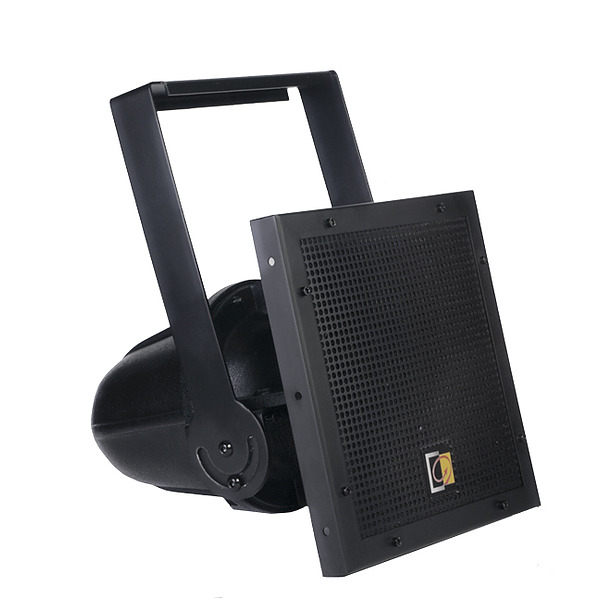

A waterproof connection box containing a multi tapping barrier terminal block enables the selection of different line transformer power tappings, while providing easy link through to other speakers. These specific features make the system IP65 rated when installed at minimum 5° downtilt. An optional mounting bracket provides a complete solution for installation of the system.

Features

  • High fidelity, full range reproduction of music and speech
  • High efficiency horn loading
  • Application specific coverage pattern
  • Scratch free EPDM coating
  • Linking possible
  • IP rating of 65

  • Colour Black
  • Coverage (H x V) 40° x 40°
  • Dimensions (H x W x D) 508 x 508 x 732 mm
  • Frequency Response 65 Hz - 20 kHz (-10 dB)
  • Impedance 8 Ohm or 100 volt
  • IP Rating IP65
  • Maximum SPL 125 dB
  • Power Rating 175 watt (RMS) 700 watt (Peak)
  • Sensitivity 95 dB
  • Transformer Taps 240, 120, 60 watt @ 100 volt plus 8 ohm bypass
  • Warranty 5 Years
  • Weight 34.5 Kg
