> >>EV SNARE/TOM MICROPHONE DYNAMIC SUPERCARDIOID
Snare/Tom Microphone Dynamic Supercardioid View larger

EV SNARE/TOM MICROPHONE DYNAMIC SUPERCARDIOID

ELEPL35

New product

Snare/Tom Microphone Dynamic Supercardioid

More details

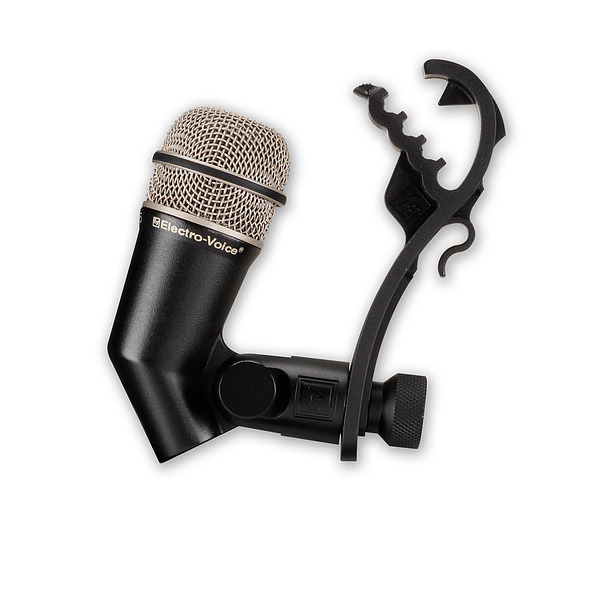

The Electro-Voice® PL35 is a professional grade supercardioid dynamic microphone designed to deliver the power, punctuation and natural tones of toms and snare drums in any size sound reinforcement system or recording studio. With its frequency response designed for that special tonal area toms and snare drums occupy, the PL35 delivers all of the “dialed-in” tone and percussive impact detail professional drummers and sound system engineers require.

The PL35’s tight supercardioid polar pattern is designed to minimize off-axis information from nearby drums and instruments entering the capsule, and allows for a very isolated instrument sound and higher gain before feedback. Cable clutter and positioning in tight spaces can always be an issue when miking toms and snares, and the PL35’s clever cable exit angle of 37.5° relative to the body reduces the vertical space above the drum required for the XLR connector and cable. The PL35 is supplied with the unique DRC-1 drum rim clamp which eliminates the need for a floor stand and boom, and allows easy-on / easy-off attachment of the microphone to virtually any drum brand steel rim.

As with most directional microphones, the low frequency response of the PL35 microphone varies with the distance from the sound source. Known as “proximity effect”, the bass response of the microphone increases as the working distance to the microphone is reduced. This “bass boost” is only audible when working at distances closer than 6 inches. Therefore, working close to the microphone will produce a more robust sound. Using this microphone at distances greater than 6 inches provides minimal coloration from proximity effect.

Close up positioning of the microphone will also reduce the potential for feedback from the sound reinforcement system. Then, the bass boost provides an increase in overall microphone output level. The mixer gain may be proportionately reduced, resulting in a reduction of the system’s sensitivity to feedback caused by sound entering the microphone from the loudspeakers.

Features

  • Voiced for open and natural tom and snare sound
  • Unique body design for clean cable management
  • Supercardioid polar pattern
  • Excellent off-axis rejection
  • Powerful Neodymium magnet structure
  • Fine mesh Memraflex™ grille

This product is available on request.

  • Colour Black
  • Dimensions (H x W x D) Height : 108 mm
  • Element Dynamic
  • Frequency Response 50 Hz - 16,000 Hz
  • Polar Pattern Supercardioid
  • Warranty 3 Years
  • Weight 236 g
