> >>AUDAC MINI STEREO MIXER AMPLIFIER
Mini Stereo Mixer Amplifier View larger

AUDAC MINI STEREO MIXER AMPLIFIER

AUDAMP523MK2

New product

Mini Stereo Mixer Amplifier

More details

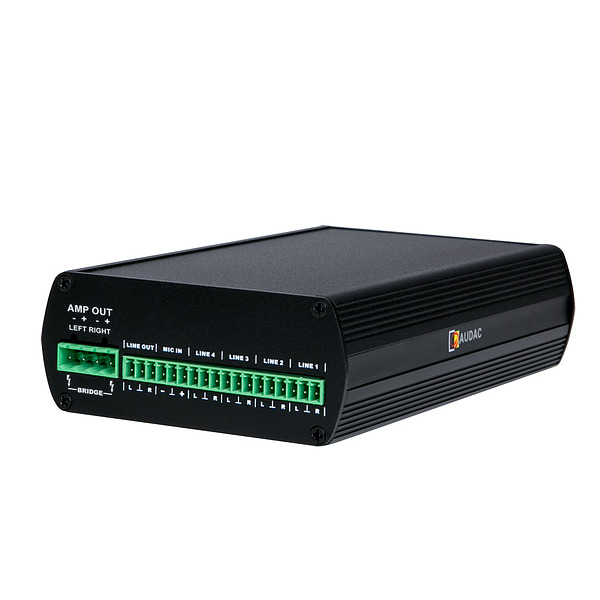

The AMP523 is a Mini Stereo Amplifier with an Integrated web based control unit, featuring four stereo line inputs and one balanced microphone input with phantom power. It has an output power rating of 2 x 15 Watt.

The simple and compact but versatile functionalities makes it perfectly suited for small speaker systems requiring compact and economical audio solutions which are comprehensive and easily controllable. Some typical applications are classrooms where the audio system will be used in combination with a smartboard, offices and meeting rooms where the music should switch automatically from background music to speech or playback when the presentation starts.

The compact size and very high efficiency even makes it possible to hide it in a closet, on a false ceiling or mount it under a desk or table. The various stereo line inputs allow simultaneous connections for different sources such as Laptops, CD or MP3 Players, Tablets, while having a microphone connected.

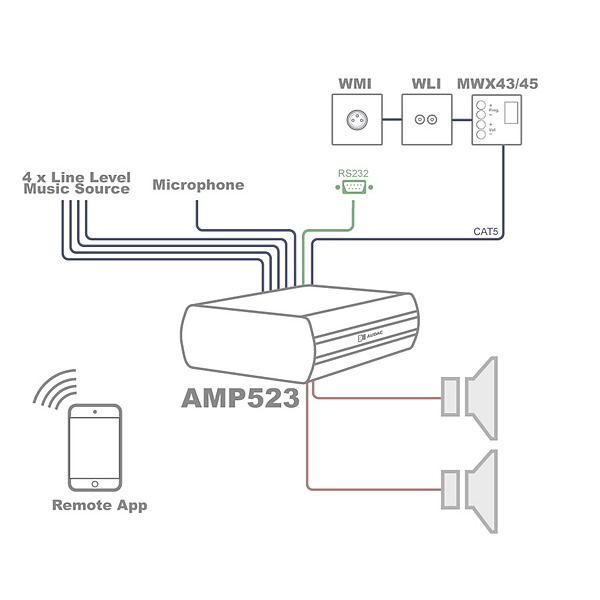

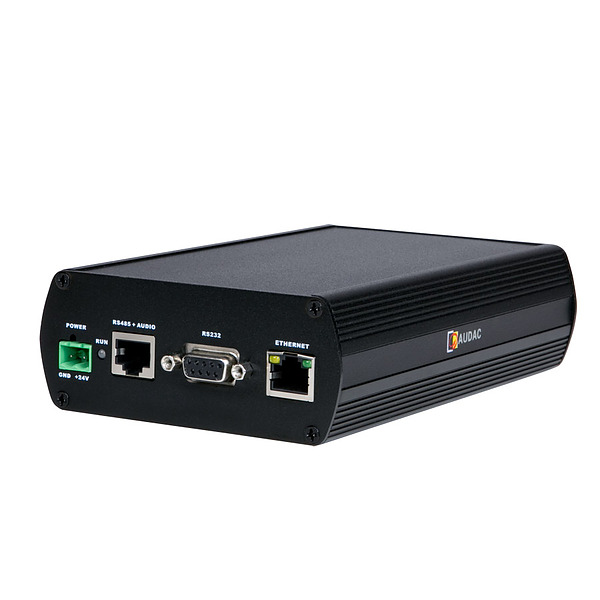

The switching between the inputs, volume regulation and other function controls can be done in multiple ways: an integrated website makes it possible to control all the functions from any computer with a web browser without requiring additional software, while the RS232 connection makes it possible to control the AMP523 with any device supporting serial communication, such as a computer or even a home or industrial automation system. Another option is to control the system through smartphones and tablets using the special developed Apps.

Download the app from itunes for apple iPhone devices click here

To make the installation even more complete, an optional MWX43 or MWX45 wall panel can be installed to control the signal routing and volume level from one or multiple fixed locations.

The Class-D Amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements.

Features

  • 4 x Stereo line inputs
  • 1 x Balanced microphone input
  • Phantom power
  • TCP/IP & RS-232 Control
  • Stereo line output
  • 2 x 15 Watt output power (1 x 30 Watt in Bridge)
  • Class-D Technology
  • Priority on microphone input
  • Easy & Compact installation
  • Colour Black
  • Dimensions (H x W x D) 44 x 108 x 164 mm
  • Power Rating 2 x 15 Watt @ 4 Ohm
  • Warranty 3 Years
  • Weight 0.81 Kg
