> >AUDAC VOICE FILE INTERFACE PLAYER MODULE FOR XMP44
Voice File Interface Player module for XMP44 View larger

AUDAC VOICE FILE INTERFACE PLAYER MODULE FOR XMP44

AUDFMP40

New product

Voice File Interface Player module for XMP44

More details

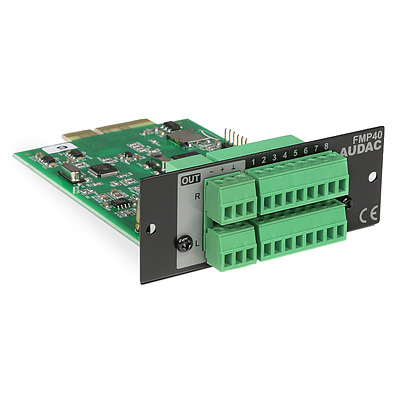

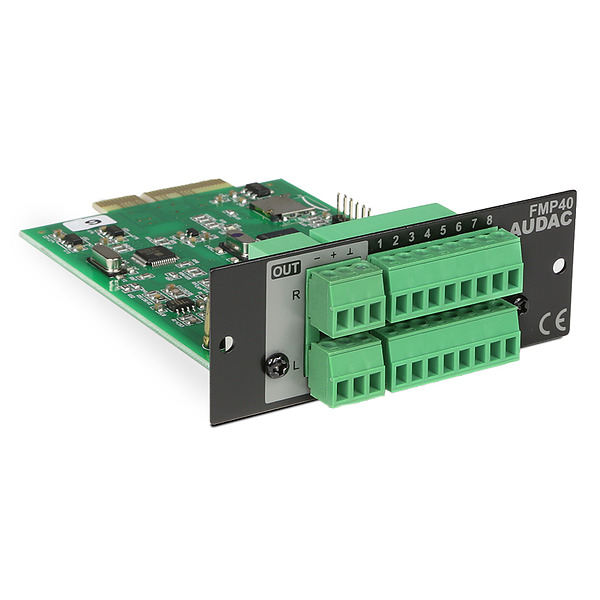

The FMP40 is a professional voice file media player featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration.

The FMP40 features 50 programmable (timer and/or contact) triggers which can be used for triggering music / voice file messages stored on various types of media carriers. Media playback from USB storage drives is possible when inserted to the controlling device, while an internal Micro SD card slot safely locks the carrier inside for applications where frequent media changes are not required. Media playback is supported in MP3, WMA, WAV, FLAC, OGG and AAC filetypes with numerous supported bitrates.

Each of the 15 contact is individually configurable, offering selection for the triggered media file and normal open (NO) or normal closed (NC) contact operation. The playback mode can be selected between pulse trigger (play complete track) or stop on release. Event triggering allows triggering at pre-defined moments. Other settings such as priority level assignment and repeat are making the FMP40 a complete and versatile solution for any application requiring voice file playback, ranging from advertisements and announcements to emergency calls.

All contact inputs are implemented using multipin terminal block connectors, while the balanced stereo line output is implemented using two 3-pin terminal block connections.

Features

  • Works with any SourceCon™ enabled device
  • Music / voice file audio playback
  • External (USB) and internal (Micro SD) media support
  • MP3, WMA, WAV, FLAC, OGG & AAC playback
  • 50 Programmable triggers (timer and/or contact)
  • 15 trigger contact inputs with NO or NC configuration
  • Momentary / continuous contact triggering
  • Priority & repeat functions
  • Balanced stereo audio output



  • Colour Black
  • Dimensions (H x W x D) 34.5 x 87 x 114 mm
  • Warranty 3 Years
  • Weight 0.079 Kg
