NEUTRIK POWERCON TRUE1 TOP APPLIANCE OUTLET CONNECTOR
NEUNAC3FPX-TOP
NAC3FPX-TOP
New product

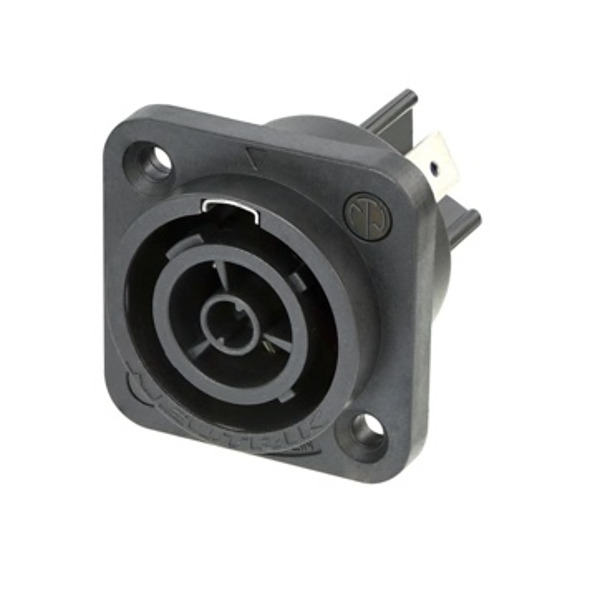

powerCON TRUE1 TOP Appliance Outlet Connector
Appliance outlet connector, 1/4" flat tab terminals
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features
-
Heavy duty sealed power connector for harsh and demanding environment
-
Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
-
Uses high impact UV-resistant materials
-
True mains connector with breaking capacity (CBC)
-
Lockable 16 A single phase connector (USA: 20 A)
-
Easy and reliable twist lock system
-
Extremely robust and reliable Unique Neutrik cable retention
-
ENEC certified according to IEC 60320
-
UL498 certified
- Colour Black
- Operating Temperature - 30 °C - +80 °C
- Warranty 1 Year
Data Sheet
