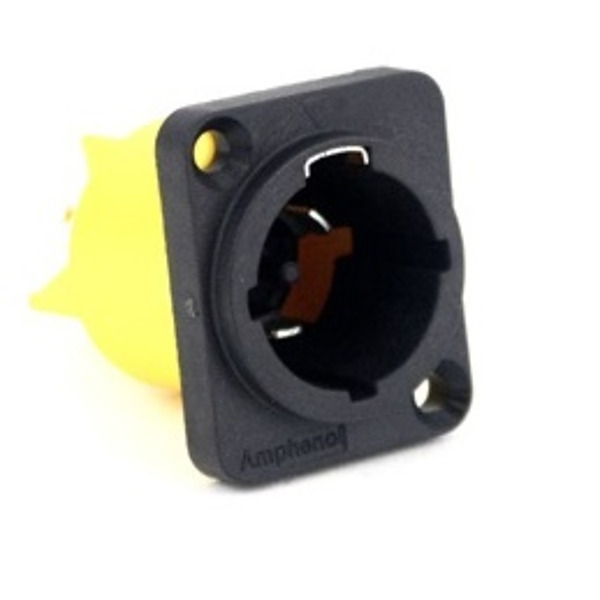

AMPHENOL POWERCON PANEL CONNECTOR - MAINS OUT
AMPHPT-3-MD
HPT-3-MD
New product
Powercon Panel Connector - Mains Out
HPT Series connectors are suitable for AC power supply where a durable latch locking connector is required.
They are rated at 16A, 250 Vac. HPT Series connectors can be connected or disconnected under load and are IP65 rated.
Features
-
2+PE contact layout
-
Quick-release, vibration resistant latch lockable
-
High impact UV resistant material
-
True Mains Connector with Current Breaking Capacity (CBC)
-
16A current rating (20A USA)
-
Industry-standard mating interface
-
IP65 rated
-
UL498 certified
-
UL50E enclosure type 4 (when mated or in combination with protective caps)
-
Patent Protected
- Colour Black
- Operating Temperature -25°C to +75°C
- Warranty 1 Year
- Weight 12g
Data Sheet
