> >>AMPHENOL POWERCON PANEL CONNECTOR - MAINS IN

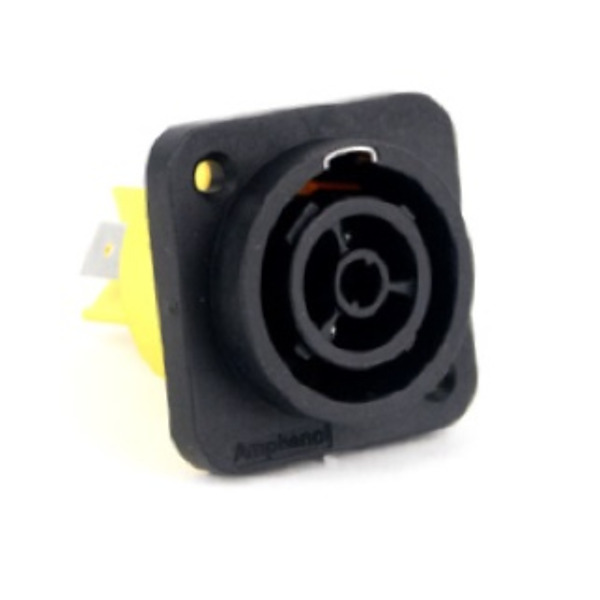

Powercon Panel Connector - Mains In View larger

AMPHENOL POWERCON PANEL CONNECTOR - MAINS IN

AMPHPT-3-FD

New product

Powercon Panel Connector - Mains In

More details

HPT Series connectors are suitable for AC power supply where a durable latch locking connector is required.

They are rated at 16A, 250 Vac. HPT Series connectors can be connected or disconnected under load and are IP65 rated.

Features

  • 2+PE contact layout
  • Quick-release, vibration resistant latch lockable
  • High impact UV resistant material
  • True Mains Connector with Current Breaking Capacity (CBC)
  • 16A current rating (20A USA)
  • Industry-standard mating interface
  • IP65 rated
  • UL498 certified
  • UL50E enclosure type 4 (when mated or in combination with protective caps)
  • Patent Protected
  • Colour Black
  • Operating Temperature -25°C to +75°C
  • Warranty 1 Year
  • Weight 12g
