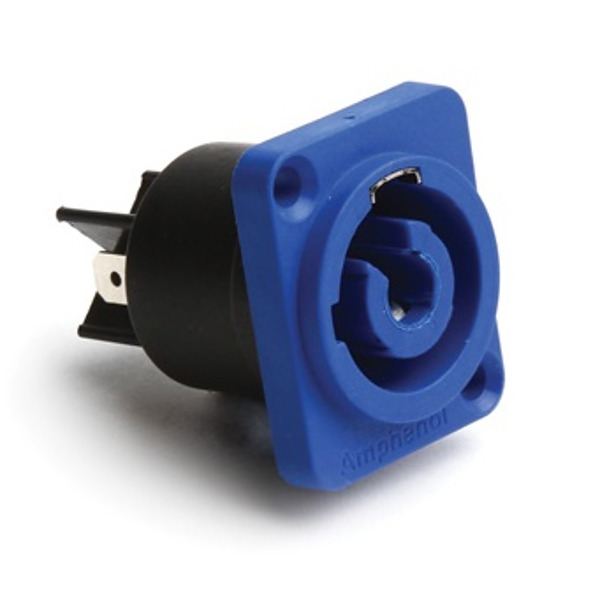

Powercon Panel Connector - Mains In View larger

AMPHENOL POWERCON PANEL CONNECTOR - MAINS IN

AMPHP-3-MDW

New product

Powercon Panel Connector - Mains In

More details

HP Series connectors are suitable for AC power supply where a latch locking connector is required.

They are rated at 25 A / 250 Vac.

Connectors are keyed and colour coded for power-in (Blue) and power-out (Grey).

Without insulation divider

Features

  • Quick release, vibration resistant latch lock
  • 3 pole
  • Screw Terminals or Solder Tab 3/16”
  • Chuck type cable clamp
  • 25A Current rating
  • Thermoplastic housing
  • Industry standard mating
  • UL, cUL recognized components (File no. E339831)
  • Colour Blue
  • Operating Temperature -25°C to +75°C
  • Warranty 1 Year
  • Weight 12g
