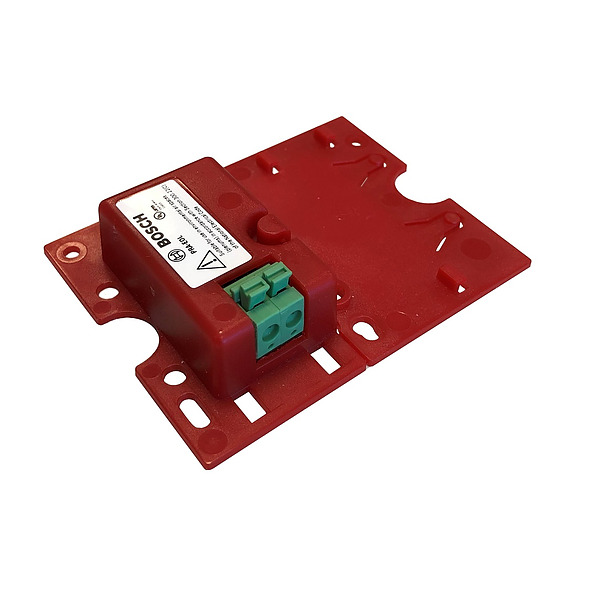

End Of Line Device View larger

BOSCH END OF LINE DEVICE

BOSPRA-EOL

New product

End Of Line Device

More details

This end of line device is a reliable solution for loudspeaker line integrity supervision, which is a requirement for emergency sound systems. It is connected at the end of a loudspeaker line, after the last loudspeaker of a series of looped-through loudspeakers.

It communicates with the PRAESENSA amplifier channel driving that loudspeaker line, to confirm the integrity of the line. Where impedance measurements may not detect a disconnected loudspeaker, depending on the number of connected loudspeakers and cable type, or report false faults, the end of line device provides a superior solution to report the correct status of the loudspeaker line.

The enclosure size is compatible with the mounting provisions in most Bosch loudspeakers for supervision boards or devices. It can also be reduced in size to fit most cable junction boxes.

Features

  • Compact device for loudspeaker end‑of‑line supervision
  • Reliable solution for (long) loudspeaker lines
  • Fault detection in amplifier without additional wiring
  • Low level, high frequency pilot tone
  • Flexible mounting options
  • Colour Red
  • Dimensions (H x W x D) 60 x 45 x 18 mm
  • Operating Temperature -5 to +50 °C
  • Warranty 3 Years
  • Weight 25 g
