AUDAC ALL-IN-ONE WALL CONTROLLER FOR M2

Product Code: AUDDW5066PLUS/B

Condition: New product

All-in-one Wall Controller for M2

More info
Specifications
Download
Accessories

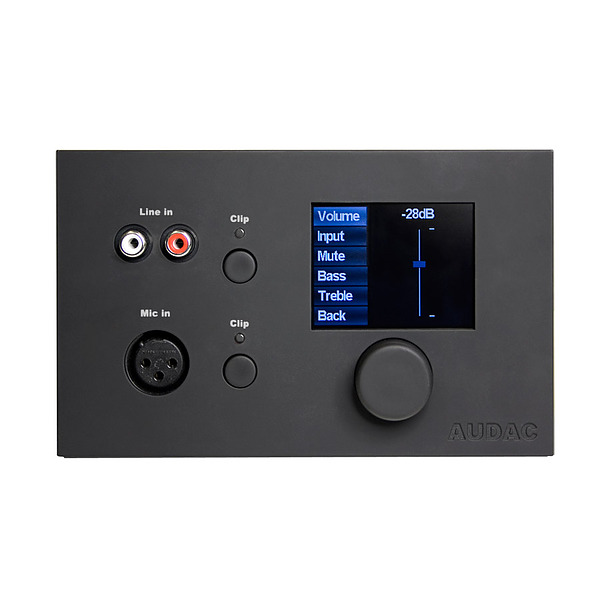

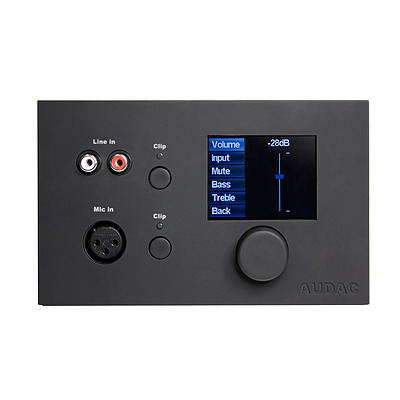

The DW5066B is a black All-in-One Wall panel controller for Multi-Zone Digital Audio Matrix systems and Multi Media Digital Audio Mixers.

If offers various control functions such as audio source selection whereby the routing can be changed or specific mixing presets (‘scenes’ - only for M2) can be triggered. The control shall be done using the versatile rotatable push dial whereby other settings such as volume, tone control, phantom power, muting, ... also can be made.

A local line and microphone level input allows the connection of additional input units to be patched with the matrix / mixer, while one of them can also be converted to a local line output. The additional inputs allow connection of a CD player, MP3 player or any other audio source as local input, while a microphone can be connected for making announcements. Both line and microphone audio input can be mixed locally using two push lock potentiometers and 15 Volt phantom power can be enabled to the microphone input for powering condenser microphones.The audio output function can be very useful in applications where a local audio output is required carrying the same audio signal as one of the direct outputs. This can be very useful for monitoring, recording or other system expansion purposes.

A 2.5” graphical LCD display ensures a userfriendly experience for controlling the system and the audio connections are performed using XLR (Microphone) and Stereo RCA (Line) connectors. The wiring between system and the wall panel should be performed by using standard UTP CAT6 Cabling, which transfers both the digital control and digital audio signals to the matrix while providing the power supply for wall panel.

Audac wall panel controllers require back boxes suited to the install. See Accessories Tab for mounting options
