QUEST 8" WALL MOUNT SPEAKER - 100 WATT

QUEMX801

New product

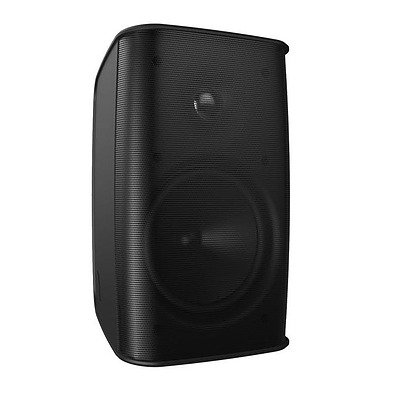

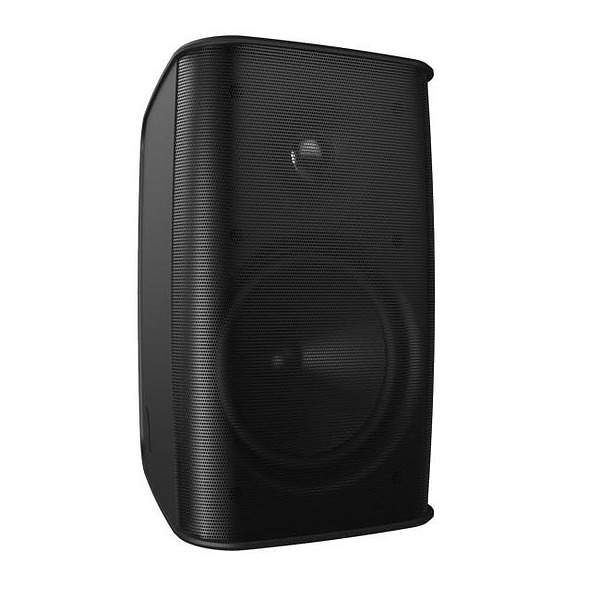

8” Wall Mount Speaker - 100 Watt

More details

The MX 801 Series all weather loudspeakers are the ideal choice for supplying high fidelity sound in both indoor and outdoor applications.

Their advanced polymer housing is designed to be acoustically inert, while being capable of a long life in harsh environments without becoming degraded by exposure to sunlight and salty air.

Mounting hardware and metal parts are made from corrosion resistant materials, and installation in direct rain exposed locations is possible.

Acoustic design is quite unique. The MX series are a sealed cabinet that allows for a very high IP rating. Despite being a sealed system, the bass response of a ported enclosure is developed using a custom designed LF driver, and proprietary resonance circuit. The benefit of this unique approach is very high fidelity audio performance from an IP rated system.

The woofer design has been engineered in such a way as to reduce the overall cabinet size requirement versus typical drivers of its size. The end result is realistic bass response indoors or in free space applications. The rare earth magnet dome tweeters yield a natural high frequency response and produce smooth vocal intelligibility.

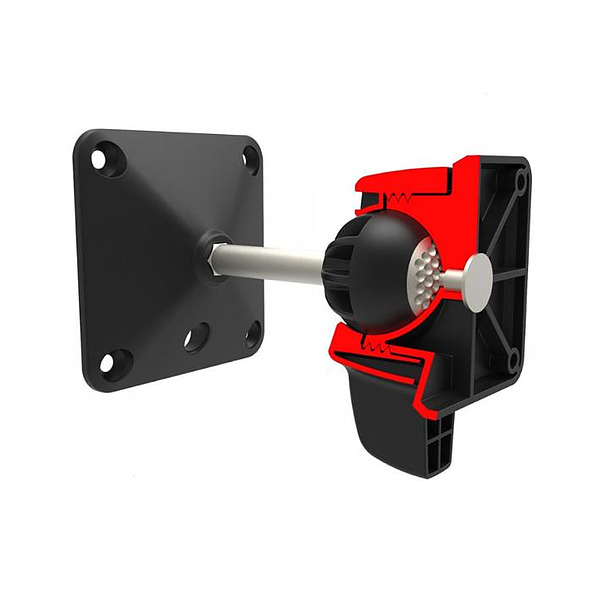

Another benefit found on the MX series is the Quest UB1 installation bracket system. This revolutionary design is both practical and elegant. It offers the most flexibility to the installer without compromising on appearance from an architectural perspective.

  • Colour Black
  • Coverage (H x V) 150° x 120°
  • Dimensions (H x W x D) 345 x 202 x 243 mm
  • Frequency Response 75 Hz – 20 kHz (- 2 dB)
  • Impedance 16 Ohm or 100 V
  • IP Rating IP56 (IP67 when used with IPMX1 kit- see Accessories)
  • Maximum SPL 112 dB
  • Power Rating 100 watt (RMS) 200 watt (Peak)
  • Sensitivity 93 dB

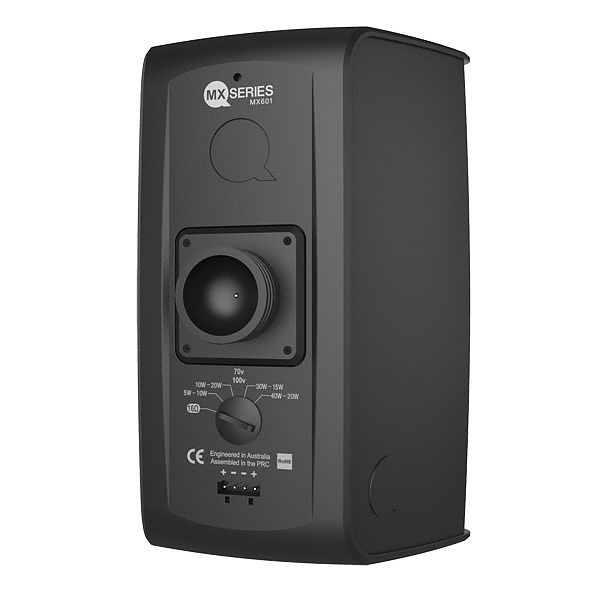

  • Transformer Taps 20w/30w/40w/50w & 16 Ohm
  • Warranty 2 Years
  • Weight 4.3 Kg
